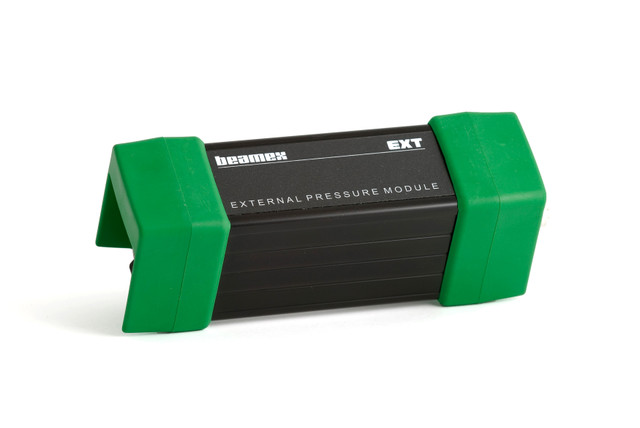

The Savo EXT range of external pressure modules will increase your configuration possibilities and add flexibility, making it possible to calibrate even more pressure ranges with the same calibrator. We offer a wide range of external pressure modules, from vacuum up to 1,000 bar (14,500 psi). Beamex EXT external pressure modules are compatible with Savok MC family calibrators.
You can find compatible pressure hoses, fittings and EXT cables on the shop. See connector on each EXT module in the table below.
High accuracy:
| EXTB |
9220310 |
700 to 1200 mbar a (10.15 to 17.4 psi a) |
10/32″ (M5) female thread |
| EXT10mD |
9220312 |
± 10 mbar diff. (±4 iwc) |
2 x 10/32” (M5) female with adapters for 1/8” (3,2 mm) ID hose |
| EXT100m |
9220315 |
0 to 100 mbar g (0 to 40 iwc) |
Bx G1/8″ male thread |
| EXT400mC |
9220320 |
±400 mbar g (±160 iwc) |
Bx G1/8″ male thread |
| EXT1C |
9220325 |
±1 bar g (-14.5 to 15 psi) |
Bx G1/8″ male thread |
| EXT2C |
9220330 |
-1 to 2 bar g (-14.5 to 30 psi) |
Bx G1/8″ male thread |
| EXT6C |
9220335 |
-1 to 6 bar g (-14.5 to 90 psi) |
Bx G1/8″ male thread |
| EXT20C |
9220340 |
-1 to 20 bar g (-14.5 to 300 psi) |
Bx G1/8″ male thread |
| EXT60 |
9220345 |
0 to 60 bar g (0 to 900 psi) |
G1/4″ B male thread |
| EXT100 |
9220350 |
0 to 100 bar g (0 to 1500 psi) |
G1/4″ B male thread |
| EXT160 |
9220355 |
0 to 160 bar g (0 to 2400 psi) |
G1/4″ B male thread |
| EXT250 |
9220360 |
0 to 250 bar g (0 to 3700 psi) |
G1/4″ B male thread |
| EXT600 |
9220365 |
0 to 600 bar g (0 to 9000 psi) |
G1/4″ B male thread |
| EXT1000 |
9220370 |
0 to 1000 bar g (0 to 15000 psi) |
G1/4″ B male thread |
Standard accuracy:
| EXT200mC-s |
9120300 |
± 200 mbar g (± 80 inH2O) |
Bx G1/8″ male thread |
| EXT2C-s |
9120320 |
-1 to 2 bar g (-14.5 to 30 psi) |
Bx G1/8″ male thread |
| EXT20C-s |
9120340 |
-1 to 20 bar g (-14.5 to 300 psi) |
Bx G1/8″ male thread |
| EXT160-s |
9120360 |
0 to 160 bar g (0 to 2400 psi) |
G1/8″ female thread |
